FTTH Product F670L DUAL BAND WIFI GPON ONU ONT 4GE FTTH English version 2.4G 5G WIFI

Количество мин заказа : 10pcs Цена : Negociatable
Упаковывая детали : Коробка коробки Время доставки : 15
Условия оплаты : L/C, T/T Поставка способности : 20000pcs/Week
Место происхождения: Китай Фирменное наименование: GPON EPON ONT
Сертификация: CE ROHS Anatel Номер модели: F670L

Подробная информация

Польза: FTTX, FTTH Цвет: белый

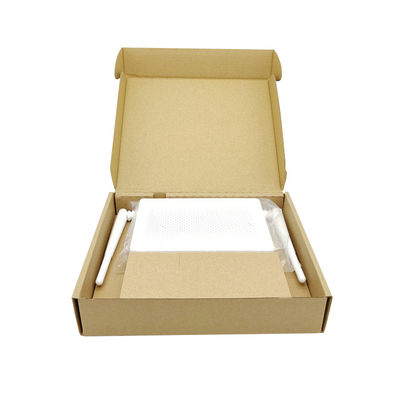

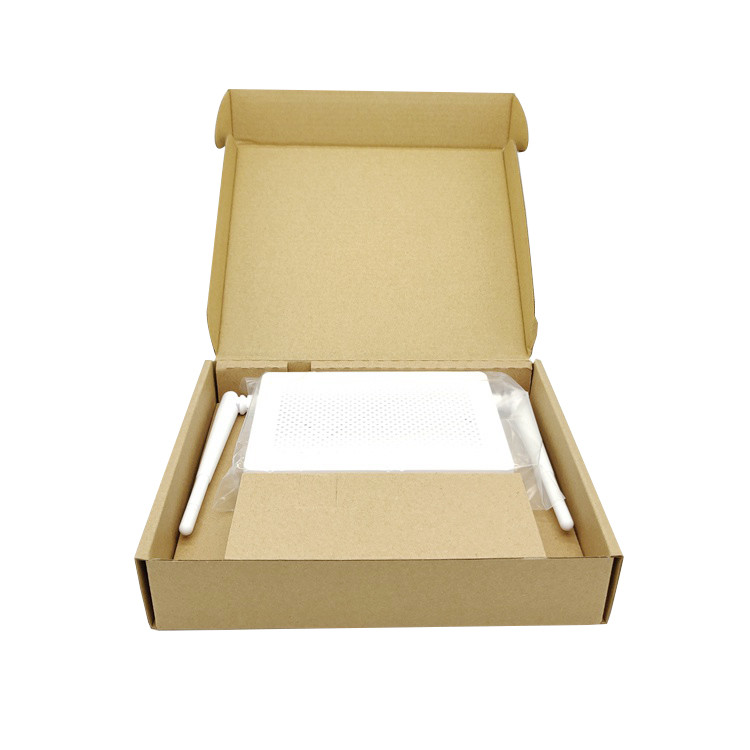

Соединитель: SC UPC SC APC Пакет: КОРОБКА

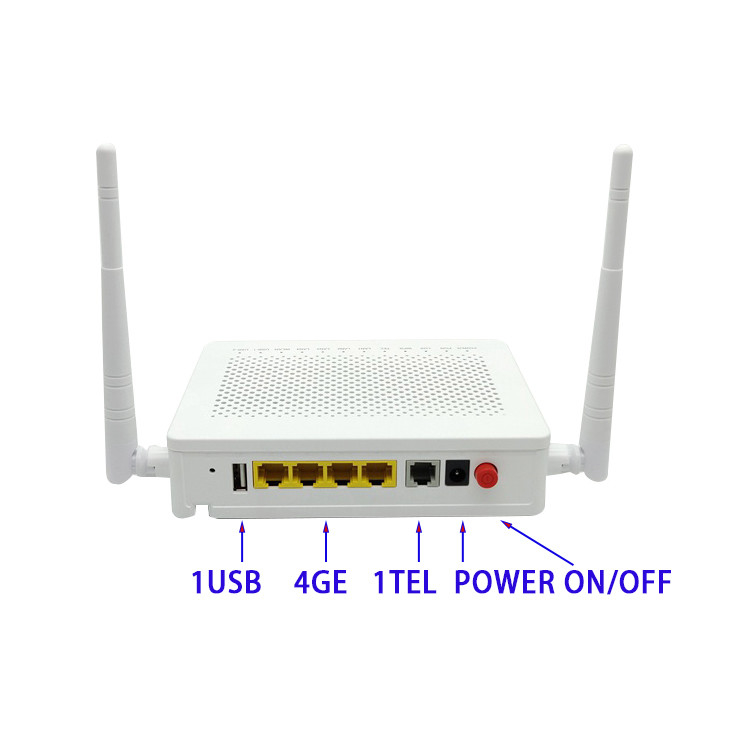

Интерфейс: 4GE+1TEL Порты: 4GE+1Post+2USB+Wifi

Характер продукции

FTTH Product F670L DUAL BAND WIFI GPON ONU ONT 4GE FTTH English version 2.4G 5G WIFI 0FTTH Product F670L DUAL BAND WIFI GPON ONU ONT 4GE FTTH English version 2.4G 5G WIFI 1

  • Ultra-wide: one deployment, continuous upgrade of network capacity
    Each PON port of the POL network has a bandwidth of up to 10G. When there is a higher bandwidth requirement, the optical fiber does not need to be replaced, only the equipment or optical modules at both ends need to be replaced, simplifying the upgrade steps and saving upgrade costs.
  • Simplified: energy saving and land saving, simple operation and maintenance
    The POL solution can reduce the computer room by about 80% and can achieve energy savings of up to 60%.
    The POL network has a simple hierarchy, which is convenient for maintenance and management, reduces failure points, and improves network reliability. Network operation and maintenance expenses can be reduced by more than 60%.
  • Convergence: One optical fiber carries all services
    A set of POL network can provide 1000M Ethernet port, POTS, CATV, Wi-Fi, RS232/485 serial port, PoE port, time synchronization interface, etc. There is no need to establish multiple sets of networks to carry multiple services.
  • Security: Provide multiple security protection mechanisms
Technical items Descriptions
Brand ZTE
Model F670L
Fiber port 4GE+1POT+1USB+WIFI,SC single-mode,
Wavelength Tx 1310nm, Rx 1490nm
Fiber interface SC/UPC
RX sensitivity <-27dBm (1490nm)
WLAN IEEE802.11b/g/n,2*2 MIMO, 2.4G/5G WIFI,external antenna(2dBi)
2.4GHz: 2 x 2 MIMO 802.11b/g/n ,5GHz: 2 x 2 MIMO 802.11a/n/ac
LAN 1*10/100/1000Mbps adaptive Ethernet ports, full/half duplex, RJ45 interface
L2 forwarding capability Forwarding packets of any length at wire speed
IPv4 L3 forwarding capability 2Gbit/s with any length packets in downstream direction
1Gbit/s with any length packets in upstream direction
IPv6 L3 forwarding capability 2Gbit/s with any length packets in downstream direction
1Gbit/s with any length packets in upstream direction
Configuration method NMS, Web, or TR069
Voice protocol SIP, H.248
DC power Adapter input: 100-240 V AC, 50 – 60 Hz ;
Adapter output: 11 – 14 V DC, 1 A
Button Reset, power
Power ≤8W
Operation Working temperature: -0-+40℃
working humidity:5-95%(non-condensation)
Dimension 250*220*65mm(length*width*height)
Net weight ≤0.8Kg
